Sixty user-defined internal presets can bestored via software or on a PCMCIA card.Downloadable software enables single- or multiple-unit remote control utilizing a Windows based computer.Link option via RS-485 network interface allows for linking multiple units for larger installation requirements.
“Zero” attack limiters on all output channels for optimal signal protection.Dynamic EQ for level-dependent equalization and parametric EQ selectable for each channel.Choice of high-, band- and low-pass filters for each input and output.Individual crossover filter types including Butterworth, Bessel and Linkwitz-Riley, with selectable roll-off characteristics from 6dB to 48dB per octave.Four different mono- and stereo-output operating modes.Three-input, six-output loudspeaker management system.Servo-balanced, gold-plated XLR connectors for all inputs and outputs guarantee excellent connectivity. Set-ups can be saved to the software, or to an optional PCMCIA card for the ultimate in portability. Remote control of one or several units can be accomplished utilizing downloadable software for a Windows based computer.

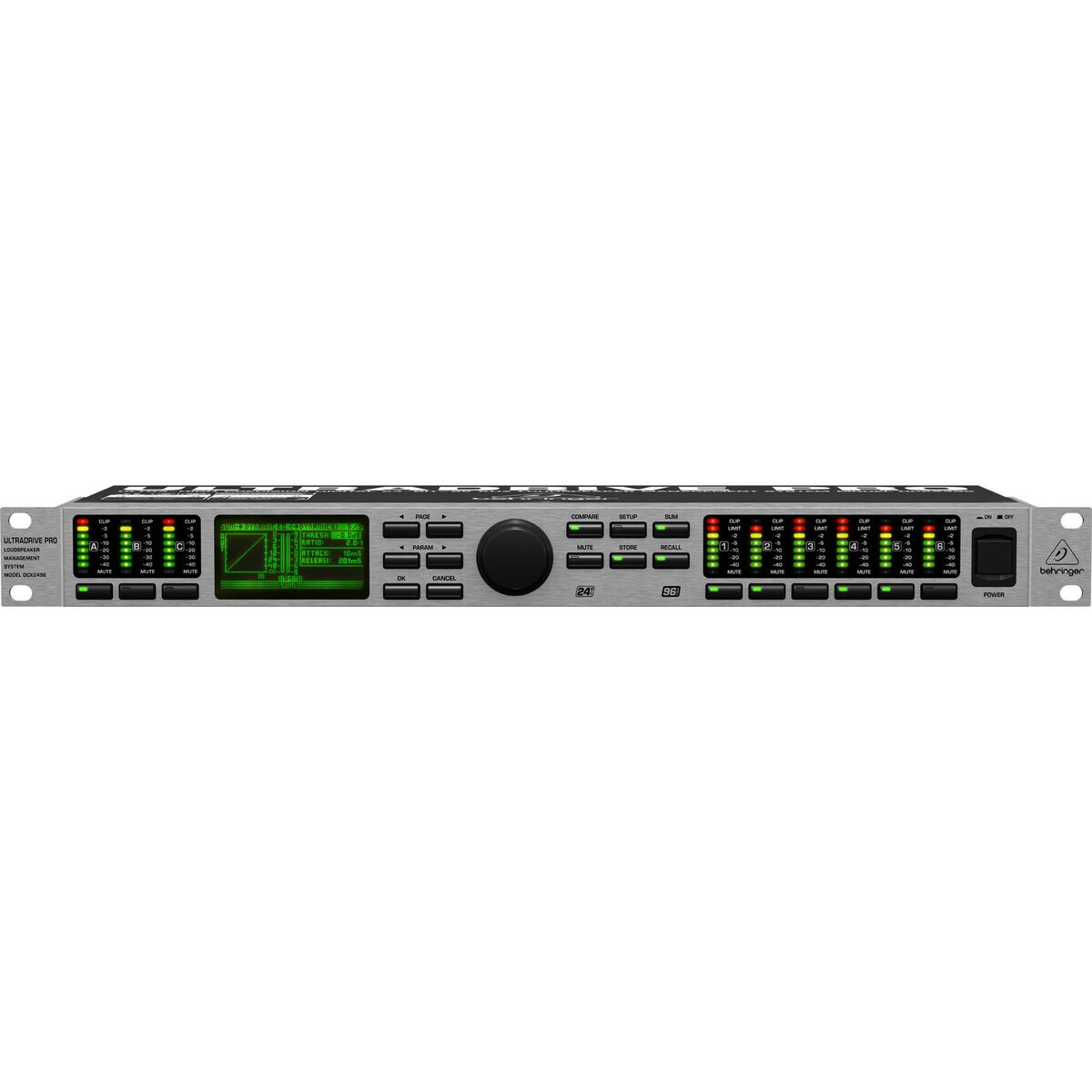

Brick-wall limiters guarantee speaker protection. EQs can be used for both musical enhancement or for level-dependent equalization. Input and output delays allow for time adjusting signals to compensate for ambient temperature changes or for adjusting arrival time differences for individual speaker clusters. Additionally, an internal input-sum signal is easily set-up.įour different mono and stereo output operating modes are available, all with individual crossover filter types with selectable roll-off characteristics. An integrated sample rate converter assists in accepting various sample rates. One of the inputs can accept a stereo AES/EBU digital signal. It allows for precise set-up of multiple loudspeaker arrays, suitable for live sound, fixed installations that require control of loudspeaker systems, and other contractor-installed applications.Įach of the three-inputs and six-outputs have fixed processing blocks, including gain, delay, EQ and dynamic EQ on the input channels, and gain, crossover, EQs, limiter and delays on the output side. The DCX2496 ULTRADRIVE PRO from Behringer is a digital loudspeaker management system, that provides excellent audio quality, along with a comprehensive feature list.
